Uninterruptible Power Supply (UPS)

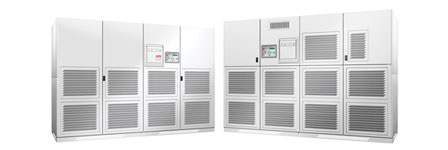

MGE EPS 8000

555-1100kVA Robust 3 phase power protection UPS systems with adaptability to meet the unique requirements of medium to large data centers, buildings and critical industrial processes


  • High Availability, High Performance Network Power Supply
    The MGE EPS 8000 is the primary choice UPS power supply in the large data center market with its benchmark on quality and availability, from 555 to 1100kVA in a single box. Relying on advanced 12 pulse rectifier and inverter technologies to restrict total harmonic distortion to less than 5 percent. Copper galvanic isolation is provided for both input and output to UPS systems while isolating the DC ground from upstream devices in the event of a ground fault condition due to battery leakage. The MGE EPS 8000 is a true high performance machine with efficiency up to 93.5% while maintaining efficiency of 92% at 25% load. UPS systems deliver clean reliable power even in the harshest of electrical environments. Featuring 100% step-load capability which ensures a fast response to load changes with accurate voltage regulation. In addition, the MGE EPS 8000 incorporates fault tolerant circuitry that protects UPS systems from accidental short circuits usually caused by load side failures or overloads. Core MGE EPS is equipped with a 100 percent rated output static switch with a stable, reliable, predetermined response time. Low carbon footprint and full front access with zero electromechanical connections at the rear of the unit allows the unit to be installed against the wall

    Products Part Number

    480V 3PH, 600V 3PH Output / 480V 3PH, 600V 3PH Input

    MGE EPS 8000 555 kVA E8TUPS555
    MGE EPS 8000 625 kVA E8TUPS625
    MGE EPS 8000 750 kVA E8TUPS750
    MGE EPS 8000 800 kVA E8TUPS800

    Products Part Number

    480V 3PH Output / 480V 3PH Input

    MGE EPS 8000 1000 kVA E8TUPS1000
    MGE EPS 8000 1100 kVA E8TUPS1100
    MGE EPS 8000 1125kVA E8TUPS1125

Call 800-444-1938 for a free engineering consultation.
