Uninterruptible Power Supply (UPS)

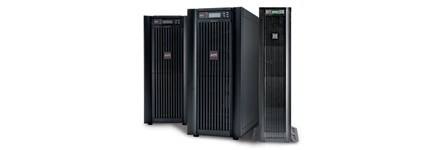

Smart-UPS VT

Compact three phase power protection with excellent efficiency and hot scalable runtime for small data centers and other business critical applications


  • Over 10 million installed - now available in three-phase Smart-UPS┬« VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with InfraStruXure┬« Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included start-up and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage and maintain.

    Products   Part Number
    APC Smart-UPS VT 10kVA 208V w/1 Batt Mod Exp to 2, Start-Up 5X8, Int Maint Bypass, Parallel Capable SUVTP10KF1B2S
    APC Smart-UPS VT 10kVA 208V w/1 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP10KF1B4S
    APC Smart-UPS VT 10kVA 208V w/2 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability ifx SUVTP10KF2B2S
    APC Smart-UPS VT 10kVA 208V w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP10KF2B4S
    APC Smart-UPS VT 10kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP10KF3B4S
    APC Smart-UPS VT 10kVA 208V w/4 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP10KF4B4S
    APC Smart-UPS VT 15kVA 208V w/2 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP15KF2B2S
    APC Smart-UPS VT 15kVA 208V w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP15KF2B4S
    APC Smart-UPS VT 15kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP15KF3B4S
    APC Smart-UPS VT 15kVA 208V w/4 Batt Mod, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP15KF4B4S
    APC Smart-UPS VT 20kVA 208V w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP20KF2B4S
    APC Smart-UPS VT 20kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP20KF3B4S
    APC Smart-UPS VT 20kVA 208V w/4 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability ifx SUVTP20KF4B4S
    APC Smart-UPS VT 30kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable ifx SUVTP30KF3B4S
    APC Smart-UPS VT 30kVA 208V w/4 Batt. Mod., Start-Up 5X8, Internal Maint Bypass, Parallel Capability ifx SUVTP30KF4B4S
    APC Smart-UPS VT Rack Mounted 20kVA 208V w/2 batt mod. exp. to 5, w/PDU & startup ifx SUVTR20KF2B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/3 battery modules exp. to 5, w/PDU & startup ifx SUVTR20KF3B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/4 battery modules exp. to 5, w/PDU & startup ifx SUVTR20KF4B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/5 battery modules, PDU & startup ifx SUVTR20KF5B5S
    APC Smart-UPS VT rack mounted 30kVA 208V w/3 battery modules exp. to 5, w/PDU & startup ifx SUVTR30KF3B5S
    APC Smart-UPS VT rack mounted 30 kVA 208V w/4 battery modules exp. to 5, w/PDU & startup ifx SUVTR30KF4B5S
    APC Smart-UPS VT rack mounted 30kVA 208V w/5 batt mod., w/PDU & startup ifx SUVTR30KF5B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/2 batt mod. exp. to 5, w/PDU & startup ifx SUVTRT20KF2B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/3 batt mod. exp. to 5, w/PDU & startup ifx SUVTRT20KF3B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/4 batt mod. exp. to 5, w/PDU & startup ifx SUVTRT20KF4B5S
    APC Smart-UPS VT rack mounted 20kVA 208V w/ISO XFMR w/5 batt mod., w/PDU & startup ifx SUVTRT20KF5B5S
    APC Smart-UPS VT rack mounted 30kVA 208V w/ISO XFMR w/3 batt mod. exp. to 5, w/PDU & startup ifx SUVTRT30KF3B5S
    APC Smart-UPS VT rack mounted 30kVA 208V w/ISO XFMR w/4 batt mod. exp. to 5, w/PDU & startup ifx SUVTRT30KF4B5S
    APC Smart-UPS VT rack mounted 30kVA 208V w/ISO XFMR w/5 batt mod., w/PDU & startup ifx SUVTRT30KF5B5S
    APC Smart-UPS VT Maintenance Bypass Cabinet 10-15kVA 208V Floormount ifx SUVTSBP10K15F
    APC Smart-UPS VT Maint. Bypass Cabinet 10-30kVA 208V Floormount with 42 Position Distribution Panel ifx SUVTSBP10K30F-DP
    APC Smart-UPS VT Maintenance Bypass Cabinet 20-30kVA 208V Floormount ifx SUVTSBP20K30F
    APC Smart-UPS VT Parallel Maintenance Bypass, up to 3 units 10-15kVA 208V Floormount ifx SUVTSBPAR10K15F
    APC Smart-UPS VT Parallel Maintenance Bypass, up to 3 units 20-30kVA 208V Floormount ifx SUVTSBPAR20K30F
    APC Smart-UPS VT Input Transformer MCCB 208/208 10-30kVA Floormount ifx SUVTSBPXFM10K30F
    APC Smart-UPS VT rack mounted 20kVA 480V in, 208V out, w/2 batt mod. exp. to 5, w/PDU & startup ifx SUVTR20KG2B5S
    APC Smart-UPS VT rack mounted 20kVA 480V in, 208V out w/3 batt mod. exp. to 5, w/PDU & startup ifx SUVTR20KG3B5S
    APC Smart-UPS VT rack mounted 20kVA 480V in, 208V out w 4 batt mod. exp. to 5, w/PDU & startup ifx SUVTR20KG4B5S
    APC Smart-UPS VT rack mounted 20kVA 480V in, 208V out w/5 batt mod., w/PDU & startup ifx SUVTR20KG5B5S
    APC Smart-UPS VT rack mounted 30kVA 480V in, 208V out w/3 batt mod. exp. to 5, w/PDU &startup ifx SUVTR30KG3B5S
    APC Smart-UPS VT rack mounted 30kVA 480V in, 208V out w/4 batt mod. exp. to 5, w/PDU & startup ifx SUVTR30KG4B5S
    APC Smart-UPS VT rack mounted 30kVA 480V in, 208V out w/5 batt mod., w/PDU & startup ifx SUVTR30KG5B5S
    APC Smart-UPS VT Input Transformer MCCB 480/208 10-30kVA Floormount ifx SUVTSBPXFM10K30G
