| TECHNICAL SPECIFICATIONS |
| Output |
| Output Power Capacity |
865 Watts / 1500 VA |
| Max Configurable Power |
865 Watts / 1500 VA |
| Nominal Output Voltage |
120V |
| Output Connections |
(2) NEMA 5-15R (Surge Protection)
(6) NEMA 5-15R (Battery Backup) |
| Input |
| Nominal Input Voltage |
120V |
| Input Frequency |
47 - 63 Hz |
| Input Connections |
NEMA 5-15P |
| Cord Length |
6 feet (1.83 meters) |
| Input voltage range for main operations |
88 - 148V |
| Input voltage adjustable range for mains operation |
78 - 152V |
| Batteries & Runtime |
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Included Battery Modules |
1 |
| Typical recharge time |
8 hour(s) |
| Replacement battery cartridge |
RBC33 |
| RBC™ Quantity |
1 |
| Typical Backup Time at Half Load |
12.4 minutes (432.5 Watts) |
| Typical Backup Time at Full Load |
3.7 minutes (865 Watts) |
| Runtime Chart |
Back-UPS RS |
Extended Run Options |

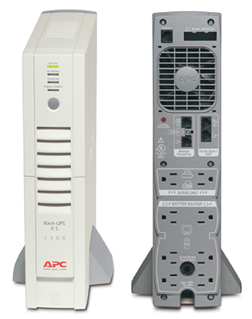

Back-UPS RS 1500VA |
| Communications & Management |
| Interface Port(s) |
USB |
| Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering
|
| Surge energy rating |
340 Joules |
| Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Dataline protection |
RJ-45 Modem/Fax/DSL/10-100 Base-T protection,Co-axial Video / Cable protection |
|
| Maximum Height |
14.60 inches (371 mm) |
| Maximum Width |
3.40 inches (86 mm) |
| Maximum depth |
13.10 inches (333 mm) |
| Rack Height |
2U |
| Net Weight |
25.00 lbs. (11.36 kg) |
| Shipping Weight |
26.00 lbs. (11.82 kg) |
| Shipping Height |
17.90 inches (455 mm) |
| Shipping Width |
8.00 inches (203 mm) |
| Shipping Depth |
16.40 inches (417 mm) |
| Color |
Beige |
| SCC Codes |
1073130419314 9 |
| Units per Pallet |
36.00 |
| Environmental |
Operating Environment |
32 - 104 °F (0 - 40 °C) |
Operating Relative Humidity |
0 - 95% |
| Operating Elevation |
0-10000 feet (0-3000 meters) |
| Storage Temperature |
23 - 113 °F (-5 - 45 °C) |
| Storage Relative Humidity |
0 - 95% |
| Storage Elevation |
0-50000 feet (0-15000 meters) |
| Audible noise at 1 meter from surface of unit |
45 dBA |
Online Thermal Dissipation |
180.00 BTU/hr |
| Conformance |
| Regulatory Approvals |
cUL Listed,FCC Part 15 Class B,FCC Part 68,UL 1449,UL 1778,UL Listed |
| Standard Warranty |
3 years repair or replace |
| Equipment protection policy |
Lifetime : $150000 |
| |
